The Ultimate Guide to Pre-Engineered Buildings (PEB) & Steel Structures: Design, Components, and Advantages

Introduction: Why Pre-Engineered Buildings (PEB) Are Shaping Modern Construction In the evolving world of construction, businesses across industries demand faster, cost-effective, and sustainable building solutions. Traditional methods involving brick, mortar, and RCC are often slow, labor-intensive, and difficult to modify later.

This is where Pre-Engineered Buildings (PEB), also known as steel buildings, modular or prefabricated buildings, come into play. Leveraging advanced construction technologies, structural steel, and modular design, PEB systems are revolutionizing how we build industrial buildings, warehouses, manufacturing facilities, retail outlets, schools, hospitals, and even community centers.

What Are Pre-Engineered Buildings (PEB)?
A Pre-Engineered Building is a steel structure system that’s designed, fabricated, and quality-checked in a factory-controlled environment, then shipped to the site in
ready-to-assemble kits. This approach ensures:
1. Precision-engineered design
2. Superior structural integrity & durability
3. Rapid on-site installation (erection)
4. Reduced labor and minimal material wastage.

Where Are PEB Systems Used?
PEBs have become the go-to solution across multiple sectors due to their flexibility and robustness. Typical applications include:

Industrial: Warehouses, Factories & workshops, Manufacturing plants, Cold storage facilities, Petrochemical & power plants, Food processing facilities.
Commercial: Retail showrooms & shopping complexes, Office buildings, Exhibition halls.
Institutional & Public: Schools & colleges, Hospitals, Community centers, Sports arenas
Agricultural: Storage barns, Dairy facilities, Poultry farms.
Special structures: Aircraft hangars, Car parks, Logistics hubs.

The Key Components of a PEB Structure
A well-designed PEB integrates multiple systems:

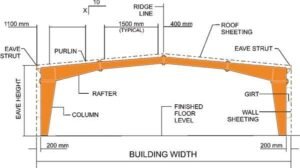

Primary Members
Columns & Rafters (Portal Frames): Often with tapered design to use material efficiently.

Gable Frames & End Frames: Provide rigidity and shape.

Secondary Members
Purlins & Girts: Support roof & wall panels. Often made from cold-formed steel.

Eave Struts, Bracings, Sag Rods: Ensure structural stability.

Base Plates & Anchor Bolts: Connect the structure to the foundation.

Roof & Wall Systems
Roof Panels & Wall Panels: Typically metal sheets or sandwich panels with insulation.

Ridge Caps, Gutters, Downspouts: Manage rainwater.

Flashing: Seals edges & joints to prevent leaks.

Interior & Accessories
Doors, Windows, Louvers, Skylights: For light, air, and access.

Mezzanine Floors: Adds interior levels.

Crane Systems: Integrated for industrial operations.

Materials & Structural Steel in PEB
Types of Steel Used
Steel Grade Yield Strength Use Cases
E250A / E250BR ~350 MPa General framing, light to medium industrial
E350 ~550 MPa Heavy-duty industrial, crane systems.

PEB structures typically use:
Hot-rolled steel: For primary built-up members (columns, rafters)
Cold-formed steel: For secondary members like purlins, girts
Galvanized / Pre-galvanized: For corrosion protection
Special coatings (e.g. Burger paints) for longer life

Key Properties
Formability & weldability: Essential for fabrication & complex profiles.
Corrosion resistance: Extended life in harsh environments.
Fire & seismic resistance: Designed as per local codes.

Engineering Standards & Design Codes
PEB manufacturers adhere to strict international and local codes for safety and performance:
IS:800: Indian Standard for general steel design
AISI: Design of cold-formed steel structures
AWS D1.1: Welding standards for structural steel
Also considers:
Wind load, snow load, live load, dead load, seismic load
Material specifications & steel grade certifications

Fabrication, Quality & Construction Process

1. Design Engineering

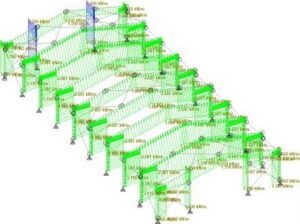

Using 3D Modeling & BIM (Building Information Modeling) to ensure clash-free, optimized designs.

2. Factory Fabrication
Cutting, forming, welding, assembly: Controlled for precision.

Built-up members (columns, rafters) use hot-rolled plates welded into I-sections.
Secondary members like purlins, girts use cold-formed C/Z sections.

3. Quality Control & Testing
Dimension checks, welding tests, material certification, paint thickness checks.

4. On-Site Installation (Erection)
Delivered as a kit. Bolted together on pre-prepared foundations using anchor bolts, guided by design drawings.

Advantages of PEB Over Traditional Construction
Benefit Traditional RCC PEB Steel Structures
Speed Slow (12-18 months) Fast (4-6 months)
Cost Control Often overruns Predictable, fixed pricing
Quality Inconsistent Factory-controlled precision
Flexibility Difficult to expand Easy to extend or relocate
Sustainability Waste intensive Recyclable steel, minimal waste
Maintenance Cracks, damp Minimal, easy repaint & inspect.

Special Types of Steel Buildings
Clear Span Buildings: Large unobstructed interiors for aircraft hangars, sports stadiums.

Multi-Span Buildings: Large factories requiring multiple frames.

Single Slope & Portal Frames: For efficient water drainage & simplicity.

Low-Rise Buildings: Typical for most PEB.

Hybrid solutions for limited high-rise: Combining PEB with RCC for up to 10+ floors.

Case Study: PEB in Action
Project: Cold Storage & Processing Facility
Size: 30,000 sq ft
Structure: Clear span with mezzanine, integrated crane system
Steel: E350 grade primary, cold-formed secondary
Completion: 5 months (vs 12 with RCC)
Results: Early operation, saved 30% on project costs, reduced energy needs via insulated panels.

Conclusion: Why PEB is the Smart Choice
Whether you’re planning a warehouse, factory, hospital, or retail outlet, a PEB system delivers unmatched speed, cost efficiency, quality, and sustainability. By working with reputable PEB manufacturers & suppliers, you ensure compliance with international codes, superior fabrication quality, and long-term performance.

Short FAQs
What is a Pre-Engineered Building (PEB)?
A building fully engineered at a factory, fabricated with steel members, and assembled on-site for faster, higher quality construction.

What are PEB structures typically used for?
Warehouses, factories, cold storage, showrooms, hospitals, schools, aircraft hangars, and agricultural facilities.

How long does a PEB building take to complete?
Usually 30-50% faster than traditional RCC construction. Many projects complete in 4-6 months.

Is it possible to expand or modify PEB structures later?
Yes. PEBs are modular—easy to extend, relocate, or retrofit.

What standards are followed in PEB design?
IS:800, AISI for cold-formed, AWS D1.1 for welding, plus local wind, seismic, and fire codes.

How is steel protected from rust?
Via galvanizing, specialized paint systems, and quality controlled fabrication.

What’s the difference between hot-rolled and cold-formed steel?
Hot-rolled is used for heavy primary frames; cold-formed for lighter secondary members like purlins and girts.

Infographic Content
Infographic 1: PEB Components at a Glance

Primary Members
Columns
Tapered Rafters
Gable Frames
End Frames

Secondary Members
Purlins (roof)
Girts (wall)
Eave Struts
Bracings & Sag Rods

Roof & Wall Systems
Roof Panels
Wall Panels
Ridge Cap
Flashing
Gutters & Downspouts

Accessories
Doors, Windows, Louvers
Skylights & Ventilators
Mezzanine Floors
Crane Systems

Infographic 2: Steel Grades vs Strength
Grade Yield Strength Application
E250A/BR ~250 MPa Light to medium frames
E350 ~350 MPa Heavy industrial, cranes
550 MPa ~550 MPa High-load clear spans

✔ Hot-rolled: for columns & rafters
✔ Cold-formed: for purlins, girts
✔ Galvanized & painted: for corrosion resistance.
